Protection nets A - B and BC-130

STEEL SUPPORT POLES “TYPE A”

Company offers a wide range of poles for protection “type A”, with different solutions to solve the security problems of any type of track.

Available also in COR-TEN, “wood“ color with zero environmental impact !

•

  » LAMP-POST POLE

•

  » "C" POLE

•

  » "OB" POLE

•

  » "XL" POLE

•

  » "PRO" POLE


NETS “TYPE A”

Protection net “Type A” polyethylene high resistance – hand finish – red or blue colour – with perimetral rope – available in different models and sizes

• » CODE 12061
  colors: azure/red Plait ø 5mm - mesh 7x7 cm - complete with perimetral rope - group with standard size of m. 25 x h.4
• » CODE 12061 D
  colors: azure/red Plait ø 5mm - mesh 7x7 cm - complete with perimetral rope - in group with different size than 25 x h.4
• » CODE 12064
  colors: azure/red Plait ø 5mm - mesh 5x5 cm - complete with perimetral rope - group with standard size of m. 25 x h.4
• » CODE 12064 D
  colors: azure/red Plait ø 5mm - mesh 5x5 cm - complete with perimetral rope - in group with different size than 25 x h.4
• » CODE 12066
  colors: azure/red Plait ø 5mm - mesh 10x10 cm - complete with perimetral rope - group available in any size by request

SLIDE NET – WORLD CUP MODEL

Slide net – woven, extruded PVC spreaded – mesh with hole 8 mm. red – blue colour

• » CODE 12073
  colors: blue/red; Slide net - woven, extruded PVC spreaded - WORLD CUP model - mesh 8mm h.225cm
• » CODE 12079
  colors: blue/red; Slide net - woven, extruded PVC spreaded - WORLD CUP model - mesh 8mm h.112,5cm
•

  » CODE 12209
  Elastic hook for slide net - cm. 17 - with sphere

SLIDE FLAG – TOURIST MODELS

•

  » CODE 12070
  Perforated slide flag - TOURISTIC EXTRA - in waterproof PE red colour - Weight 500 g/m2
•

  » CODE 12071
  Peforated slide flag - TURISTIC type - in PE blue - bordered and buttonholed h. 1 or 2 m - weight 200 gr/sqm
•

  » CODE 12209
  Elastic hook for slide net - cm. 17 - with sphere

ACCESSORIES AND SPARE PARTS

To set up a complete protection system TYPE A, it is necessary accessories and spare parts, such as lower and higher steel cables, dynamic ropes, pulleys and snaplink, shading net for the summer season, and other products for a perfect installation

•

  » CODE 12211
  Galvanized steel pulley for sliding NY rope - seat for rope Ø 12 mm
•

  » CODE 12208
  Snaplink in galvanized iron ø 10mm - h. 100 mm - opening 15 mm
•

  » CODE 12207
  Galvanized steel cable ø 8mm, with textile core
•

  » CODE 12210/10
  Galvanized steel cable ø 10mm, with textile core
•

  » CODE 12210
  Galvanized steel cable ø 12mm, with textile core
•

  » CODE 12204
  Polyethylene rope ø 8mm (rolls of 300 mt.)
•

  » CODE 12206
  Polyester rope ø 10mm white (rolls of 200 mt.)
•

  » CODE 12205
  Polyethylene rope Ø 10 mm - Yellow/black (roll 200 m long)
•

  » CODE 12222 RO
  Wire Ø 5 mm for net repair (roll 200 m long)
•

  » CODE 12216 SQ
  Anchor square block (cookie) cm 12x12x th.2 , for lower steel cable, including rope Ø 10mm length 1m
•

  » CODE 12216
  Anchor for lower steel cable
•

  » CODE 12216/a
  Iron rod Ø 20 mm x H 120 cm, with shaped cutted tip for anchor insertion into the ground
•

  » CODE 12219
  "Grillo" Ø 12mm ((internal measurement 8,5 x 3 cm)

SEE ALL CLOSE

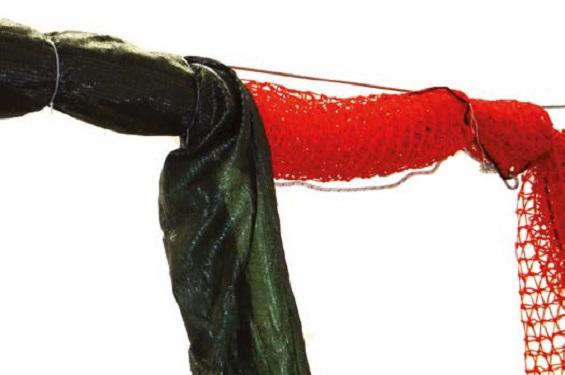

ANTI U.V. NET FOR A-NET RECOVERY

• » CODE 12080
  Shading protect net for “TYPE A” net recovery - Anti U.V. - 20 m x h. 1 m - green colour
• » CODE 12081
  Shading protect net for “TYPE A” net recovery - Anti U.V. - 25 m x h. 1 m - green colour
• » CODE 12082
  Shading protect net for “TYPE A” net recovery - Anti U.V. - 50 m x h. 1 m - green colour
